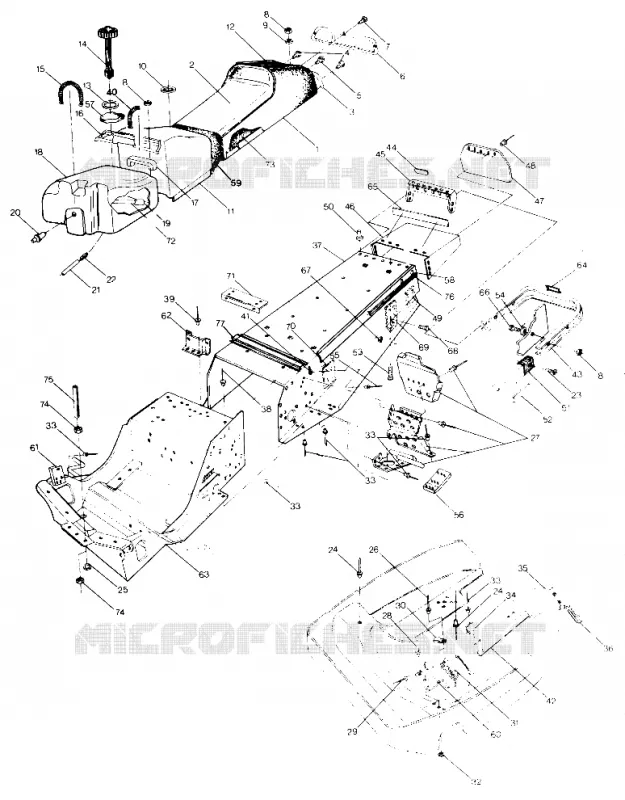

CHASSIS AND SIEGE 500 AND 500 CLASSIC (4919251925001A) POUR 500 SKS

1

SEAT ASM. Substituted by 2200751 (2-7 12 54)

2681490

Non disponible

1

SEAT ASM (500) Substituted by 2200751 (Incl. 2-7 12 73) - 500

2681484

Non disponible

2

COVER SEAT (500) Substituted by 2200741

2681485

Non disponible

2

COVER SEAT(CLASSIC) Substituted by 2200741

2681491

Non disponible

2

COVER SEAT (SP) Substituted by 2200741 (500 SP)

2681494

Non disponible

3

HOUSING TAILLIGHT

5430425

Non disponible

4

BULB TAILLIGHT(10)

4030015

$7,99 Prix unitaire TTC

5

BULB BRAKELIGHT

4030019

Non disponible

6

LENS TAILLIGHT

5430423

Non disponible

7

SCREW(10)

7511840

Non disponible

8

NUT NYLOK

7542122

$1,99 Prix unitaire TTC

9

WASHER-.270X1.25X.060 FL-Y

7558221

$3,99 Prix unitaire TTC

10

GROMMET GAS TANK [No Longer Available]

5431190

Non disponible

11

COVER TANK (CLASSIC) Substituted by 2200741

2681492

Non disponible

11

COVER TANK (SP) Substituted by 2200741 (500 SP)

2681495

Non disponible

11

COVER TANK (500) Substituted by 2200741

2681486

Non disponible

12

RETAINER LUGGAGE(10) [No Longer Available]

7080269

Non disponible

12

BUCKLE&STRAP (Sport 400 600)

2681290

Non disponible

13

GASKET-GAS CAP Substituted by 5810513

5810142

5810513

$14,99 Prix unitaire TTC

14

INSERT FUEL TANK Substituted by 5850098

5850093

Non disponible

14

CAP GAS(HI.CAP.)

2511184

Non disponible

15

SPRING TANK FRONT

7042020

$25,99 Prix unitaire TTC

16

BRACE TUNNEL REINF.

5222412

Non disponible

17

CUSHION TANK H.D.

5420126

Non disponible

18

TANK GAS Substituted by 2511199

5431130

Non disponible

19

FUELPICKUP W/STRAINER

7052037

7052301

$24,99 Prix unitaire TTC

20

FITTING OUTLET DOUBLE

7052023

$34,99 Prix unitaire TTC

21

KIT-TANK VENT

2200190

Non disponible

22

VENT-TANK

5430579

Non disponible

23

SCREW(10)

7511863

$3,49 Prix unitaire TTC

24

RIVET-POP3/16(.251-.375)AL-LFB

7621457

$1,99 Prix unitaire TTC

25

PLUG

7080288

Non disponible

26

RIVET-POP 3/16(.251-.375)-ST-Z

7621402

$1,99 Prix unitaire TTC

27

FOOTREST LH (650) (650 Only)

2200303

Non disponible

27

FOOTREST RH (650) [No Longer Available] (650 Only)

2200304

Non disponible

27

FOOTREST ASM LH

2200250

Non disponible

27

FOOTREST ASM RH

2200254

Non disponible

28

RIVET(50)

7621452

$1,99 Prix unitaire TTC

29

RIVET

7621330

$1,99 Prix unitaire TTC

30

CLIP WIRING (10) Substituted by 7080665

4020035

Non disponible

31

HINGE

5210728

Non disponible

32

WASHER FLAT

7558212

$1,49 Prix unitaire TTC

33

RIVET Substituted by 7621429

7621620

7621429

$1,99 Prix unitaire TTC

34

CLIP BELT Substituted by 5222769 (400 600)

5220817

5222769

$14,99 Prix unitaire TTC

35

GUARD CLUTCH Substituted by 5240965

5230118

Non disponible

36

PIN RETAINING (10)

7080216

7080698

$16,99 Prix unitaire TTC

37

TUNNEL ASM. Substituted by 1011808 (Incl. 46)

1011789

Non disponible

37

TUNNEL ASM. Substituted by 1011809 (650 Only)

1011790

Non disponible

37

TUNNEL (LIQ.SKS-91) (Incl. 46) - 500 SKS

1011811

Non disponible

38

RIVET (MONOBOLT) Substituted by 7661637

7661620

7661637

$1,99 Prix unitaire TTC

40

SPRING TANK

7042033

Non disponible

41

SNAP-MALE(10)

7080227

Non disponible

42

DECAL ENG/CLUTCH [No Longer Available]

7072871

Non disponible

43

BUMPER REAR Substituted by 5224334-067

5224334

Non disponible

43

BUMPER (SKS) Substituted by 5224349-067 (400 SKS & 650 SKS Only)

5224349

Non disponible

44

DECAL TRACK SILVER [No Longer Available]

7072873

Non disponible

44

DECAL TRACK SEAT(BLK.) [No Longer Available]

7073038

Non disponible

44

DECAL TRACK Substituted by 7072872

7072132

Non disponible

45

PANEL TUNNEL BACK Substituted by 5220478-067

5220478

Non disponible

46

PANEL R.CLOSE-OFF ASM. (Incl. 41)

1011799

$50,29 Prix unitaire TTC

47

FLAP SNOW (BLUE) Substituted by 5410394

5410554

5410394-1038

$184,99 Prix unitaire TTC

47

FLAP SNOW SILVER Substituted by 5410394-1106 (400)

5410394

5410394-1038

$184,99 Prix unitaire TTC

48

POP RIVET(50)

7621418

$1,99 Prix unitaire TTC

49

WEARPLATE TUNNEL (400 & 650)

5222061

Non disponible

50

RIVET Substituted by 7661812 (SPORT)

7661818

Non disponible

51

CAP BUMPER Substituted by 5430930-070 (TRAIL)

5430930

Non disponible

52

REFLECTOR RED

2670070

$15,19 Prix unitaire TTC

53

BOLT

7512103

$5,99 Prix unitaire TTC

54

WASHER [INTL]

7558301

$1,99 Prix unitaire TTC

55

RIVET(50)

7621222

$0,99 Prix unitaire TTC

56

PLATE TUNNEL RH

5220635

Non disponible

56

PLATE TUNNEL LH

5220634

Non disponible

57

FOAM FILLER

5810201

Non disponible

58

DECAL(47.5##)TUNNEL [No Longer Available]

7072078

Non disponible

59

HARNESS-TAILLIGHT Substituted by 2460399

2460226

Non disponible

60

BRACKET HINGE Substituted by 5241437

5220406

Non disponible

61

SUPPORT MUFFLER FRONT [No Longer Available]

5222575

Non disponible

62

BRKT GASTANK WELD. Substituted by 1011733-067

1011733

Non disponible

63

BULKHEAD Substituted by 1011743-067

101176301

Non disponible

63

BULKHEAD (500) Substituted by 1011743-067 (500 Only)

1011743

Non disponible

64

DECAL(36.0##)R.BUMP. [No Longer Available] (500 Only)

7072653

Non disponible

64

DECAL STRIPE R.BUMPER [No Longer Available] (500 Classic Only)

7072623

Non disponible

65

DECAL SKS BLUE [No Longer Available]

7073057

Non disponible

66

BOLT(10)

7512240

$6,99 Prix unitaire TTC

67

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1,99 Prix unitaire TTC

68

BOLT(10)

7515432

Non disponible

69

PAD RH R.SUSP.MTG. Substituted by 1011750-067

1011750

Non disponible

69

PAD LH R.SUSP.MTG. Substituted by 1011749-067

1011749

Non disponible

70

BRKT. Substituted by 5220542-067

5220542

Non disponible

71

BRKT TOOL BOX

5220973

Non disponible

72

LINE-BOOST 3/16 ID 85 CM

8450003

8450003-1525

$129,99 Prix unitaire TTC

73

SEAT BUN [No Longer Available]

5430707

Non disponible

74

PALNUT(10) (Twin ES)

7670031

Non disponible

75

SPACER (500 Classic Only)

5332896

Non disponible

76

DECAL LH TUNNEL(91-500) [No Longer Available]

7072982

Non disponible

76

DECAL RH TUNNEL(91-500) [No Longer Available]

7072983

Non disponible

77

STRIP-WEAR (600 600 SE)

5510130

Non disponible

77

DECAL RH TUNNEL(91-SP) [No Longer Available]

7073037

Non disponible

77

BRKT R.FUELTANK MTG. Substituted by 5222375-067

5222375

Non disponible

77

SEAT ASM (500SP) Substituted by 2200751 (500 SP)

2681493

Non disponible

77

DECAL LH TUNNEL(91-SP) [No Longer Available]

7073036

Non disponible

CHASSIS AND SIEGE 500 AND 500 CLASSIC (4919251925001A) POUR 500 SKS - 0910564 DE 1991

Autres pièces pour 500 SKS - 0910564

POLARIS 500 SKS - 0910564 1991
