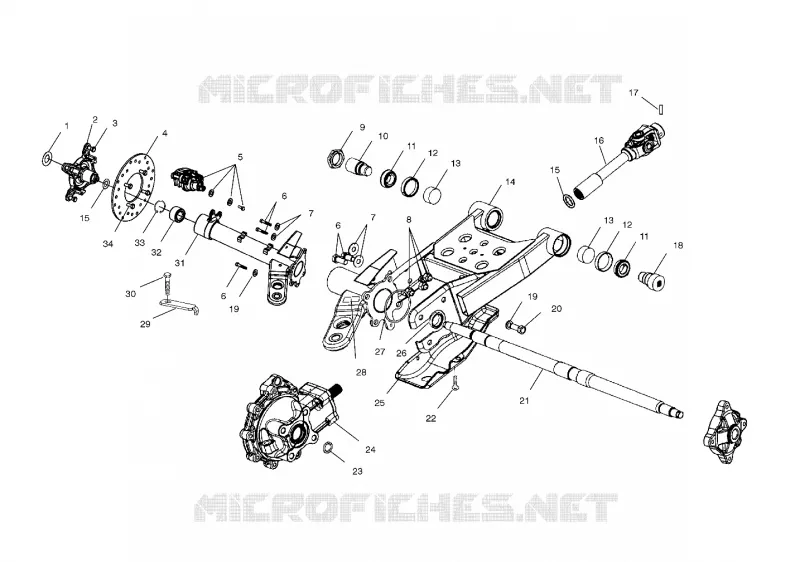

BRAS OSCILLANT/REAR SUPPORT PONT
1
2
3
4
5
5
5
6
6
6
7
7
8
9
10
11
11
12
12
13
13
14
15
15
16
17
18
19
19
20
21
22
23
5
25
25
25
26
27
28
29
30
31
32
33
34
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
5
25
26
27
28
29
30
31
32
33
34
1
O-Ring
5412022
Non disponible
2
Hub Wheel (If built after 5/01/02)
5133360
Non disponible
3
STUD(10)
7515513
$1,99 Prix unitaire TTC
4
Disc Brake
5244882
Non disponible
5
BOLT(10)
7515481
$4,49 Prix unitaire TTC
5
WASHER-SPRING-LOCK
7552603
$1,49 Prix unitaire TTC
6
Bolt
7517604
Non disponible
7
WASHER
7555721
$1,99 Prix unitaire TTC
8
NUT NYLON
7547065
$6,99 Prix unitaire TTC
9
Nut Jam
5133387
Non disponible
10
Pivot Threaded LH
5133388
Non disponible
11
Bearing Tapered Roller Cone
3514399
$38,99 Prix unitaire TTC
12
Bearing Tapered Roller Cup
3514398
Non disponible
13
Foam
5812447
Non disponible
14
Asm. Swing Arm [Incl. 12]
1541820
Non disponible
15
O-Ring
5412202
$6,99 Prix unitaire TTC
16
Asm. Prop Shaft Rear
1380202
Non disponible
17
PIN-SPRING 5/16 X 1 5/8-Y
7661913
$6,99 Prix unitaire TTC
18
Pivot Swing Arm RH
5133389
Non disponible
19
WASHER SPLIT LOCK
7553201
$6,99 Prix unitaire TTC
20
Bolt
7517585
$8,99 Prix unitaire TTC
21
Axle Rear
5133626
Non disponible
22
Screw
7517612
Non disponible
23
O-Ring
5411531
Non disponible
24
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Non disponible
25
Plate Skid Rear Housing
5242851067
$30,29 Prix unitaire TTC
25
Pad Rubber
5811716
Non disponible
25
Asm. Skid Plate Rear
1012881
$89,09 Prix unitaire TTC
26
Collar Rear Axle
5132698
Non disponible
27
O-Ring
5411707
Non disponible
28
Decal Hitch
7170910
Non disponible
29
Clamp Brake Line Rear
5245050
Non disponible
30
SCREW(10)
7512017
$8,99 Prix unitaire TTC
31
Tube Axle LH
1013264067
Non disponible
32
Bearing Hubstrut
3514342
$69,99 Prix unitaire TTC
33
RING-RETAINING 2.500 INTERNAL
7710507
$3,99 Prix unitaire TTC
34
SCR-HH-5/16-18X0.75 GR5 ZY3 NY
7512325
$3,99 Prix unitaire TTC
Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
