SYSTÈME DE TRANSMISSION ASSEMBLY 500 EFI 0942774 AND EFI SKS 0942574 (4924982498017A) POUR 500 EFI SKS - 0942574 DE 1994

CARTER DE CHAINEE ASSEMBLY 500 EFI 0942774 AND EFI SKS 0942574 (4924982498016A)

OUTILS 500 EFI 0942774 and EFI SKS 0942574 (4924982498018A)

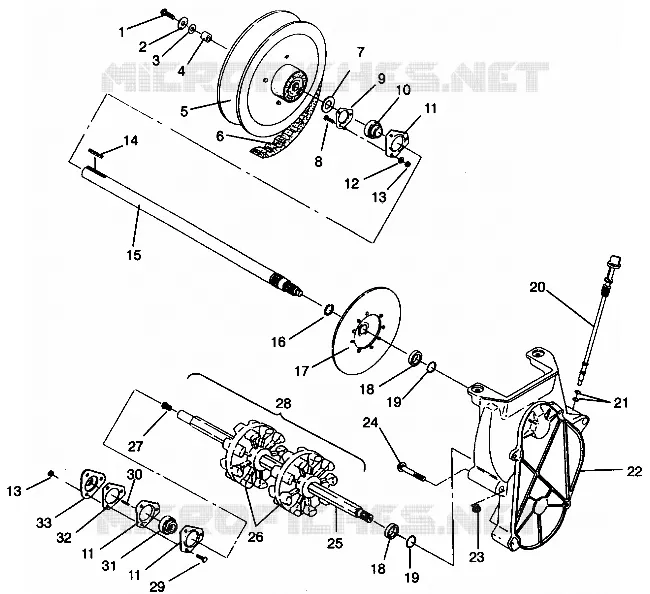

SYSTÈME DE TRANSMISSION ASSEMBLY 500 EFI 0942774 AND EFI SKS 0942574 (4924982498017A)

1

BOLT(10)

7515301

Non disponible

2

WSHR-.344X.750X.062-Y

7555701

$6,99 Prix unitaire TTC

3

WASHER FLAT .344x.875x.063

7555734

$1,49 Prix unitaire TTC

4

SPACER

5020291

Non disponible

6

BELT DRIVE(5)

3211042

$134,49 Prix unitaire TTC

7

BUSHING

7556509

$2,99 Prix unitaire TTC

8

BOLT(10) Substituted by 7512377

7512394

$8,99 Prix unitaire TTC

9

FLANGETTE

5240252

Non disponible

10

BEARING JACKSHAFT

3514519

Non disponible

11

FLANGETTE

5222751

$24,99 Prix unitaire TTC

12

WASHER-.344X.688X.063 FL-Y

7558402

$1,49 Prix unitaire TTC

13

NUT-5/16-18 NYLOK-Y [INTL]

7542324

$1,49 Prix unitaire TTC

14

KEY-SQUARE(10)

7721204

$5,49 Prix unitaire TTC

15

JACKSHAFT ASM BLK. (Incl. 16)

1332141067

Non disponible

16

RING RETAINING

7710422

$6,99 Prix unitaire TTC

17

DISC ASM BRAKE

1910086

Non disponible

18

SLEEVE SEAL

5020588

$38,99 Prix unitaire TTC

19

O-RING

5410613

$3,49 Prix unitaire TTC

20

DIPSTICK Substituted by 1332143

5431419

$84,99 Prix unitaire TTC

21

O-RING

5410675

$2,99 Prix unitaire TTC

22

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Non disponible

23

NUT FLANGE

7542423

$6,99 Prix unitaire TTC

24

BOLT(10)

7515428

$8,99 Prix unitaire TTC

25

DRIVE SHAFT Substituted by 6230083

6230067

Non disponible

26

SPROCKET 9T

5430571

Non disponible

27

BUSHING METAL SPEEDO

3280019

$19,99 Prix unitaire TTC

28

DRIVESHAFT ASM. Substituted by 1590246 (Incl. 28 30 31)

1590230

Non disponible

29

BOLT CARRIAGE

7512331

$6,99 Prix unitaire TTC

30

SQ. KEY SPEEDOMETER (10)

3280017

$24,99 Prix unitaire TTC

31

BEARING DRIVESHAFT

3514518

Non disponible

32

GASKET

5830012

$3,99 Prix unitaire TTC

33

ADAPTER DRIVE W/ZERK

3280116

$179,99 Prix unitaire TTC

Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
