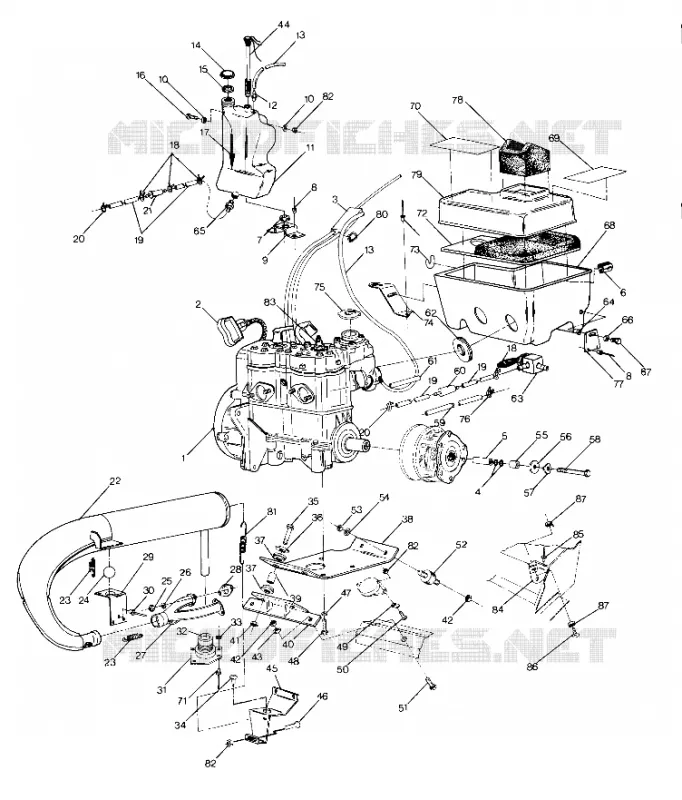

SUPPORT MOTEUR 500 and 500 Classic Updated 10/88 (4915411541021A)

-

ENG.EC50PL-02 [No Longer Available] (500 Classic Only)

1211457

Non disponible

1

ENG.EC50PL-01 [No Longer Available] (500 0nly)

1211456

Non disponible

2

HANDLE-RECOIL

5430520

Non disponible

3

CABLE THROTTLE

7080373

Non disponible

4

O-RING CLUTCH BOLT

5410507

$1,99 Prix unitaire TTC

5

SPACER CLUTCH BOLT

5020513

$57,99 Prix unitaire TTC

7

GROMMET RUBBER

5410021

Non disponible

8

RIVET-POP3/16X.402(.126-.250)

7621425

$1,99 Prix unitaire TTC

9

BRACKET

5223985

Non disponible

10

WASHER-.312 X .734 X .065-Z

7558302

$2,99 Prix unitaire TTC

11

TANK OIL

5430921

Non disponible

11

TANK OIL (Classic)

5430997

Non disponible

12

VENT-TANK

5430579

Non disponible

13

VENT LINE 1/8 BULK Substituted by 8360009-600

8360009

8360009-600

$79,99 Prix unitaire TTC

14

CAP-OIL TANK [No Longer Available]

5430594

Non disponible

15

GASKET OIL CAP

5810141

$3,99 Prix unitaire TTC

16

SCREW(10)

7512116

Non disponible

17

DECAL OIL LEVEL [No Longer Available]

7072160

Non disponible

18

CLAMP

7080236

$2,99 Prix unitaire TTC

19

FUEL LINE-50FT.PKG. Substituted by 8450003-1525

2870563

8450003-1525

$129,99 Prix unitaire TTC

20

CLAMP-HOSE(10)

7080134

Non disponible

21

FILTER

2530009

$11,99 Prix unitaire TTC

22

MUFFLER INDY 500

1260537

Non disponible

23

SPRING EXHAUST(10)

7042031

7041687

$11,99 Prix unitaire TTC

24

BALL-EXH.MT.

5430687

$20,19 Prix unitaire TTC

25

NUT(10)

3080285

Non disponible

26

WASHER LOCK (10)

3080530

$5,99 Prix unitaire TTC

27

MANIFOLD Substituted by 1260501-029

1260501

Non disponible

28

GASKET EXHAUST Substituted by 3084439

3082510

Non disponible

29

SUPPORT MUFFLER Substituted by 1011601-067

1011601

Non disponible

30

RIVET CH. Q

7621429

$1,99 Prix unitaire TTC

31

HAT EXHAUST Substituted by 5432465

5431058

Non disponible

32

BOOT EXHAUST

5410502

$44,99 Prix unitaire TTC

33

WASHER FLAT

7558212

$1,49 Prix unitaire TTC

34

DAMPNER VIB.

5410467

$15,99 Prix unitaire TTC

35

SCREW(10)

7512533

Non disponible

36

WASHER FLAT

7555740

$2,99 Prix unitaire TTC

37

MOUNT RUBBER ENGINE [No Longer Available]

5410523

Non disponible

38

PLATE MOTOR MT.

5220684

Non disponible

39

SPACER

5332779

Non disponible

40

MOUNT MOTOR Substituted by 1011587-067

1011587

Non disponible

41

NUT (10)

7542513

Non disponible

42

NUT LOCK(10) Substituted by 7542411

7542415

Non disponible

43

WASHER

7558403

$8,99 Prix unitaire TTC

44

SENSOR OIL LEVEL W/CONN. Substituted by 4040040 (Classic)

4040016

4040040

$134,99 Prix unitaire TTC

45

BRKT REAR MUFFLER Substituted by 5222153-067

5222153

Non disponible

46

SCR-RHCAR-1/4-20X0.75 GR5 ZY3

7512193

$3,99 Prix unitaire TTC

47

WASHER LOCK(10)

7553101

$6,99 Prix unitaire TTC

48

BOLT

7512539

$6,99 Prix unitaire TTC

49

NUT SPEED

7670021

$9,99 Prix unitaire TTC

50

BOLT-CARRIAGE(10)

7512263

$6,99 Prix unitaire TTC

51

BOLT(10) Substituted by 7512457

7512491

Non disponible

52

MOUNT

3110022

Non disponible

53

Nut

7542403

Non disponible

54

WASHER(10) Substituted by 7555806

7555720

7555806

$1,49 Prix unitaire TTC

55

BUSHING-.437 X.770 X.50

5430261

$12,99 Prix unitaire TTC

56

WASHER-.440X1.25X.190 FL-Y

5210748

$6,99 Prix unitaire TTC

57

WASHER-7/16-INT LK-(1222)-Z [ACCESSORY]

7575202

$8,99 Prix unitaire TTC

58

BOLT(10)

7512565

$34,99 Prix unitaire TTC

59

HOSE IMPULSE [No Longer Available]

5521132

Non disponible

60

FILTER FUEL (10)

2530008

$9,99 Prix unitaire TTC

61

FUEL LINE3/16ID-2FT. Substituted by 8450037-600

5521133

$119,99 Prix unitaire TTC

62

BOOT

5410271

Non disponible

63

VALVE FUEL SHUT-OFF

7052039

Non disponible

64

NUT WELL

7541923

$9,99 Prix unitaire TTC

65

FITTING OUTLET SINGLE

7052042

$12,99 Prix unitaire TTC

66

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$2,99 Prix unitaire TTC

67

SCREW

7512279

$1,49 Prix unitaire TTC

68

SILENCER INTAKE(DRILLED) Substituted by 5430955

5431112

Non disponible

69

DECAL COOLING SYSTEM [No Longer Available]

7072131

Non disponible

70

DECAL SPEC (500) [No Longer Available] (500 & 500 Classic Only}

7072611

Non disponible

71

POP RIVET(50)

7621418

$1,99 Prix unitaire TTC

72

ASM. BAFFLE

1253102

$114,99 Prix unitaire TTC

73

DECAL SHUT-OFF VALVE [No Longer Available]

7072151

Non disponible

74

BRKT AIR SILENCER BLK. Substituted by 5223973-067

5223973

Non disponible

75

CAP PRESSURE

2511155

Non disponible

76

HOSE CLAMP RED

7080003

$1,99 Prix unitaire TTC

77

BRKT INTAKE SILENCER [No Longer Available]

5210928

Non disponible

78

FOAM INTAKE Substituted by 1253107

5810377

1253107

$64,99 Prix unitaire TTC

79

COVER SILENCER

5430920

$75,69 Prix unitaire TTC

79

COVER SILENCER(DRILLED) (500 Classic Only)

5431111

Non disponible

80

CLIP(10)

7080278

$4,49 Prix unitaire TTC

81

SPRING-EXHAUST

7042029

$9,99 Prix unitaire TTC

82

NUT NYLOK

7542122

$1,99 Prix unitaire TTC

83

SPARKPLUG(8)

3070165

$6,99 Prix unitaire TTC

84

BRACKET Substituted by 1011741-067

1011741

$59,99 Prix unitaire TTC

85

RIVET Substituted by 7661638

7661625

7661638

$1,99 Prix unitaire TTC

86

STOP

3110023

Non disponible

87

NUT JAM [ACCESSORY]

7542432

$6,99 Prix unitaire TTC

SUPPORT MOTEUR 500 and 500 Classic Updated 10/88 (4915411541021A)

Liste des machines utilisant ce schéma
