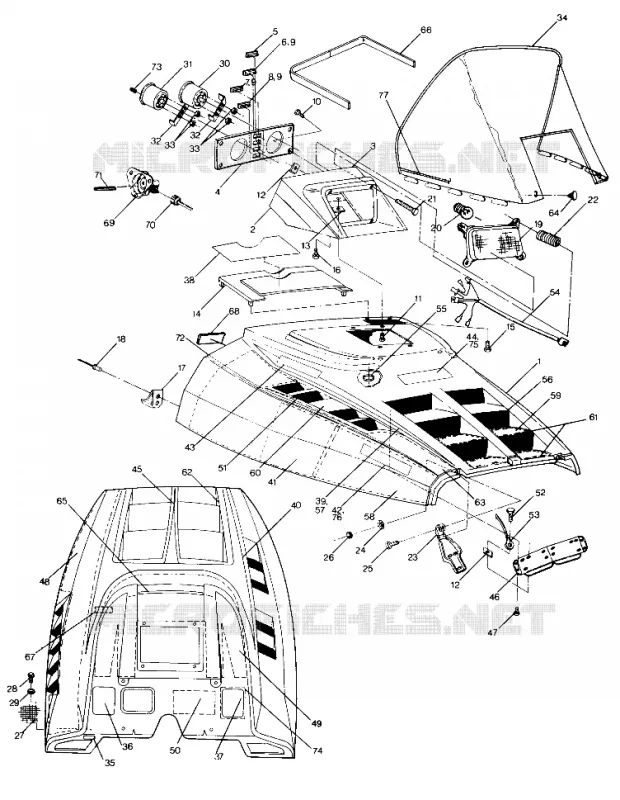

CAPOT 400, 500, 500 Classic and 650 Updated 10/88 (4915411541005A)

1

DESC NOT_AVAILABLE (650 & 500 Only)

5431079

Non disponible

2

HSG INST BOTTOM Substituted by 5430922-070

5431051

Non disponible

2

HOUSING INST.BOTTOM Substituted by 5430922-070

5430922

Non disponible

3

HOUSING INST.TOP Substituted by 5430923-070

5430923

Non disponible

3

HSG INST TOP Substituted by 5430923-070

5431052

Non disponible

4

BEZEL INST.

5430924

Non disponible

5

INDICATOR#TEMP#WARN.

4040011

$59,99 Prix unitaire TTC

6

INDICATOR#LOW-OIL#WARN. (Classic)

4040012

Non disponible

7

INDICATOR#HI-BEAM#WARN. (Classic)

4040013

Non disponible

8

INDICATOR #ACC#WARN. (Classic)

4040014

Non disponible

9

PLUG INDIC.HOLE (400 & 650)

5430967

$11,99 Prix unitaire TTC

10

SCREW SCKT.HD.CAP(10)

7512008

Non disponible

11

SCREW

7512283

$6,99 Prix unitaire TTC

12

NUT SPEED(10)

7670056

Non disponible

13

NUT U-TYPE SPEED

7670057

$1,99 Prix unitaire TTC

14

DESC NOT_AVAILABLE (650 & 500 Only)

5431078

Non disponible

15

SCREW(10)

7511840

Non disponible

16

SCREW(10)

7512009

Non disponible

17

CUP HOOD LATCH

5430733

$9,99 Prix unitaire TTC

18

RIVET-5/32 BULBEX-B

7621334

$1,99 Prix unitaire TTC

19

HEADLIGHT ASM. Substituted by 4032038 (Incl. 20-22)

2431006

Non disponible

20

BULB H/L

4030028

Non disponible

20

BULB HALOGEN

2870448

$34,99 Prix unitaire TTC

20

DESC NOT_AVAILABLE

4030039

Non disponible

21

SCREW ADJ.(10)

4032003

$8,99 Prix unitaire TTC

22

SPRING-ADJ

4032002

Non disponible

23

HINGE ASM HD. Substituted by 2635005-067

2635005

Non disponible

24

WASHER-.312 X .734 X .065-Z

7558302

$2,99 Prix unitaire TTC

25

BOLT-CARRIAGE(10)

7512263

$6,99 Prix unitaire TTC

26

NUT NYLOK

7542122

$1,99 Prix unitaire TTC

27

SCREEN HOOD Substituted by 5211117-067

5211117

Non disponible

28

SCREW(10)

7511861

Non disponible

29

RIVET BURR(50)

7555756

Non disponible

30

SPEEDOMETER (Incl. 32-33)

3280092

$170,99 Prix unitaire TTC

30

SPEEDO. (KILOMETER) (All Models)

3280097

Non disponible

31

TACHOMETER 3 CYL. Substituted by 3280192 (Incl. 32-33) (650)

3280096

Non disponible

31

TACHOMETER (TRAIL)

3280093

Non disponible

32

BRACKET (SPORT)

3280098

Non disponible

33

NUT

3280063

Non disponible

34

WINDSHIELD STD (88-92)

5431037

Non disponible

35

LABEL #U.S.A.#

7073024

Non disponible

36

DECAL OPER.CAUT.ENG. [No Longer Available] (650)

7072492

Non disponible

36

DECAL OP.CAUT (ENG.) [No Longer Available] (400)

7072489

Non disponible

37

DECAL OP.CAUT (FR.) [No Longer Available] (400)

7072490

Non disponible

37

DECAL OPER.CAUT.(FR.) [No Longer Available] (650)

7072493

Non disponible

38

DECAL DASH WARNING [No Longer Available] (650)

7072491

Non disponible

38

DECAL DASH WARNING [No Longer Available] (400)

7072488

Non disponible

39

DECAL RH HOOD STRIPE [No Longer Available] (400 & 650 Only)

7072571

Non disponible

39

DECAL RH HOOD SIDE [No Longer Available] (500 Classic Only}

7072595

Non disponible

39

DECAL RH HOOD STRIPE [No Longer Available] (500 Only)

7072655

Non disponible

39

DECAL LH HOOD SIDE [No Longer Available] (500 Classic Only)

7072594

Non disponible

39

DECAL LH HOOD STRIPE [No Longer Available] (400 & 650 Only)

7072570

Non disponible

39

DECAL LH HOOD STRIPE [No Longer Available] (500 Only}

7072654

Non disponible

40

DECAL LH HOOD FORK [No Longer Available] (400 & 650 Only)

7072572

Non disponible

40

DECAL LH HOOD TOP [No Longer Available] (500 Classic Only

7072609

Non disponible

40

DECAL RH HOOD FORK [No Longer Available] (500 Only)

7072657

Non disponible

40

DECAL RH HOOD TOP [No Longer Available] (500 Classic Only}

7072610

Non disponible

40

DECAL LH HOOD FORK [No Longer Available] (500 Only)

7072656

Non disponible

40

DECAL RH HOOD FORK [No Longer Available] (400 & 650 Only)

7072573

Non disponible

41

TAPE FOIL FOAM

5810405

Non disponible

42

DECAL LOW.HOOD(500) [No Longer Available] (500 Only)

7072577

Non disponible

42

DECAL LOW.HOOD(650) [No Longer Available] (650 Only)

7072576

Non disponible

42

DECAL HOOD #400#LOWER [No Longer Available] (400 Only)

7072644

Non disponible

43

DECAL INDY SILVER [No Longer Available] (650 Only)

7072578

Non disponible

43

DECAL INDY [No Longer Available] (500 Only)

7072658

Non disponible

43

DECAL #INDY# [No Longer Available] (400 Only)

7072579

Non disponible

44

DECAL CTR (650) [No Longer Available] (650 Only)

7072586

Non disponible

44

DECAL CTR (500) [No Longer Available] (500 Only)

7072575

Non disponible

44

DECAL CTR #400# [No Longer Available] (400 Only)

7072645

Non disponible

45

DECAL CTR HOOD FORK [No Longer Available] (500 Only)

7072660

Non disponible

45

DECAL CTR HOOD FORK [No Longer Available] (400 & 650 Only)

7072574

Non disponible

46

PLATE RE-INF. (HD.)

5222105

$63,49 Prix unitaire TTC

48

FOAM HOOD RH

5810375

Non disponible

48

FOAM HOOD LH

5810374

Non disponible

49

FOAM HOOD CTR

5810376

Non disponible

50

FOAM HOOD

5810389

Non disponible

51

TAPE FOIL

5810395

Non disponible

52

BOLT

7511989

Non disponible

53

CABLE HOOD RETAINER (650)

7080368

$18,99 Prix unitaire TTC

53

CABLE HD.RETAINER (Classic & 400)

7080360

$44,99 Prix unitaire TTC

54

HARNESS H/L.&INST. [No Longer Available] (Classic)

2460260

Non disponible

54

HARNESS H/L.&INST. [No Longer Available] (400 & 650)

2460261

Non disponible

55

O RING (HEAVY) (10) Substituted by 5410970

5410387

5410970

$1,99 Prix unitaire TTC

56

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Non disponible

57

KIT DECAL#89 CLASSIC [No Longer Available]

2200288

Non disponible

57

KIT DECAL 89#500# [No Longer Available]

2200287

Non disponible

57

KIT DECAL 89#400# [No Longer Available]

2200286

Non disponible

57

KIT DECAL 89#650# [No Longer Available]

2200289

Non disponible

58

TAPE FOIL FOAM

5810407

Non disponible

59

TAPE FOIL RH

5810394

Non disponible

59

TAPE FOIL LH

5810393

Non disponible

60

TAPE FOIL

5810396

Non disponible

61

TAPE FOIL

5810397

Non disponible

62

TAPE FOIL LOUVER PIPE SIDE

5810404

Non disponible

63

TAPE FOIL FOAM

5810406

Non disponible

64

CLIP-PLASTIC(10) Substituted by 7621505

7670041

7621509

$1,99 Prix unitaire TTC

65

DECAL HOOD-H/L POD [No Longer Available]

7072676

Non disponible

65

DECAL POD HD.-H/L. [No Longer Available] (Classic & 400)

7072523

Non disponible

66

PAD W/S LH

5810414

Non disponible

66

PAD W/S RH BLACK

5810438

$2,59 Prix unitaire TTC

66

PAD W/S LH BLACK

5810437

Non disponible

66

PAD W/S

5810415

Non disponible

67

CLIP WIRING (10) Substituted by 7080665

4020035

Non disponible

68

LOGO E/S SILVER (500 Classic Only)

5431073

Non disponible

69

ADAPTER DRIVE Substituted by 3280116

3280095

3280540

$179,99 Prix unitaire TTC

70

CABLE SPEEDO.

3280094

$109,99 Prix unitaire TTC

71

SQ. KEY SPEEDOMETER (10)

3280017

$24,99 Prix unitaire TTC

72

DECAL STRIPE HOOD ACCENT [No Longer Available] (500 Classic Only)

7072629

Non disponible

73

KNOB TRIP ODOMETER

3280103

$5,89 Prix unitaire TTC

74

DECAL SPEC.(650) [No Longer Available]

7072497

Non disponible

74

DECAL SPEC (500) [No Longer Available] (500 & 500 Classic Only}

7072611

Non disponible

74

DECAL SPEC (#88-#91) [No Longer Available]

7072503

Non disponible

75

EMBLEM CLASSIC INDY [No Longer Available] (500 Classic Only)

5431074

Non disponible

76

LOGO CLASSIC #89 [No Longer Available] (500 Classic Only)

5431049

Non disponible

77

DECAL W/S 500CLASSIC [No Longer Available] (500 Classic Only)

8330168

Non disponible

77

DECAL 2FT BLUE PINSTRIPE (500 Only)

8330167

Non disponible

77

PR MIRRORS R.VIEW Substituted by 2870938

2870626

Non disponible

77

PINSTRIPE RED W/S (400 & 650 Only)

8330133

Non disponible

CAPOT 400, 500, 500 Classic and 650 Updated 10/88 (4915411541005A)

Liste des machines utilisant ce schéma
