DEMARREUR WIDETRAK LX 0962064 and EUROPEAN WIDETRAK LX E962064 (4931643164D003) POUR EURO WIDETRAK LX - E962064 DE 1996

LANCEUR WIDETRAK LX 0962064 and EUROPEAN WIDETRAK LX E962064 (4931643164D002)

EMBLEMES WIDETRAK LX 0962064 and EUROPEAN WIDETRAK LX E962064 (4931643164A011)

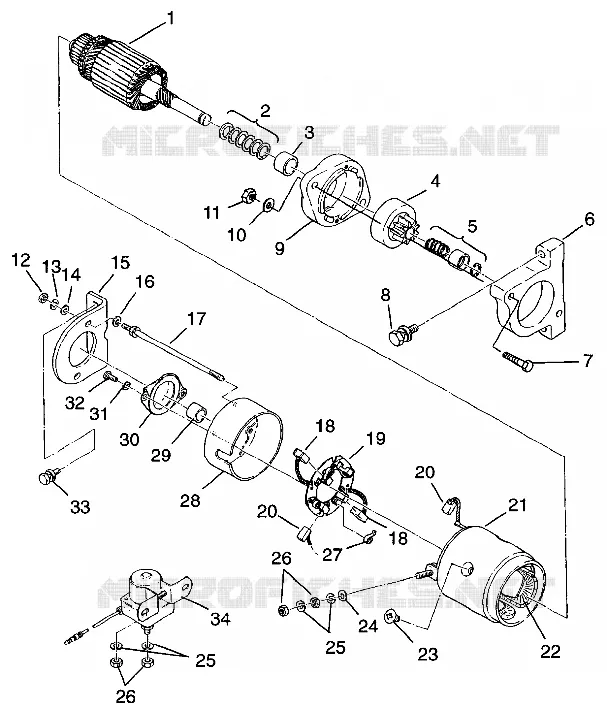

DEMARREUR WIDETRAK LX 0962064 and EUROPEAN WIDETRAK LX E962064 (4931643164D003)

1

ARMATURE ASM.

3084115

Non disponible

2

KIT-WASHER (Twin ES)

3083191

Non disponible

3

BUSHING METAL FRONT (Twin ES)

3083206

Non disponible

4

PINION ASM (Twin ES)

3083201

Non disponible

5

STOPPER SET (PINION)

3084116

Non disponible

6

BRKT FR.STARTER

1012036067

Non disponible

7

BOLT

7512310

$3,99 Prix unitaire TTC

8

BOLT&WASHER ASM.

3083862

$1,99 Prix unitaire TTC

9

COVER ASM-FRONT. (Incl. 17) (Twin ES)

3083205

Non disponible

10

WASHER FLAT .344x.875x.063

7555734

$1,49 Prix unitaire TTC

11

NUT FLEX-LOC(10)

7542303

$10,99 Prix unitaire TTC

12

NUT(10) (Twin ES)

3083042

Non disponible

13

WASHER SPRING(10)

3083133

Non disponible

14

WASHER Substituted by 3083774

3083134

Non disponible

15

BRKT R.STARTER

5240377067

Non disponible

16

WASHER

3083357

$3,99 Prix unitaire TTC

17

BOLT-THROUGH (Twin ES)

3083203

Non disponible

18

BRUSH (-) (-) (Twin ES)

3083196

Non disponible

19

HOLDER ASM BRUSH (Incl. 8 9) (Twin ES)

3083195

Non disponible

20

BRUSH (+) (+) (Twin ES)

3083194

Non disponible

21

MOTOR-STARTER (Incl. 2-19 27-29) (Twin ES)

3083189

Non disponible

22

COIL-FIELD (Incl. 5 6) (Twin ES)

3083192

Non disponible

23

SCREW-POLE CORE SET (Twin ES)

3083193

Non disponible

24

WASHER(10)

3080078

Non disponible

25

WASHER SPRING(10)

3080077

$3,99 Prix unitaire TTC

26

NUT(10)

3082939

Non disponible

27

SPRING-BRUSH (Twin ES)

3083197

Non disponible

28

COVER ASM-REAR (Incl. 11) (Twin ES)

3083198

Non disponible

29

COVER-REAR METAL (Twin ES)

3083199

Non disponible

30

COVER-DUST (Twin ES)

3083204

Non disponible

31

WASHER-SPRING(10) (Twin ES)

3083208

Non disponible

32

SCREW (Twin ES)

3083207

Non disponible

33

BOLT&WASHER(10)

3083946

Non disponible

34

SWITCH-MAGNETIC Substituted by 3085521 (Incl. 27 28) (Twin ES)

3083211

$109,99 Prix unitaire TTC

Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
