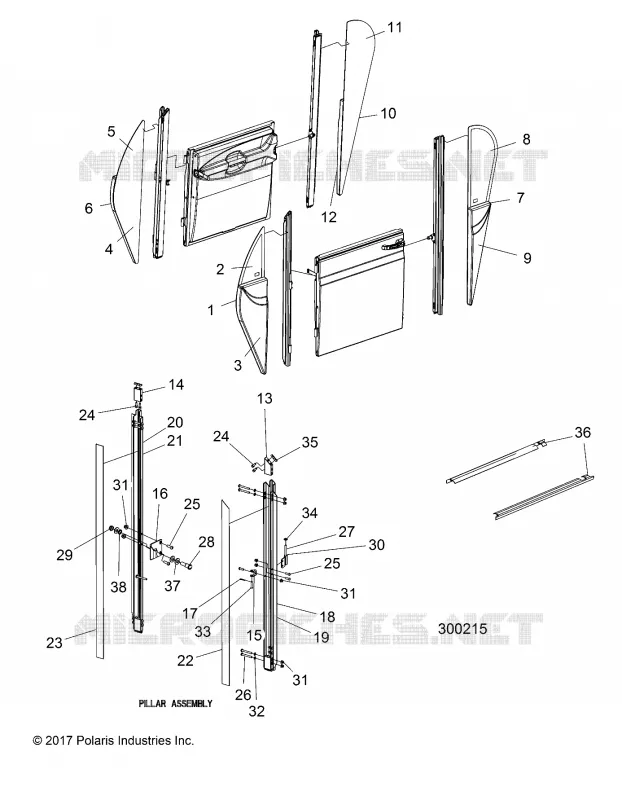

PORTES, FILL POUR GEM (R24) - L17G2/4/6/EURO ALL OPTIONS DE 2017

PORTES, FILL

1

ASM-DOOR FILL FRONT LH WHITE

2635881599

Non disponible

1

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Non disponible

2

GLASS-FILL FRONT FULL LH

2635859

Non disponible

3

PANEL-FILL FRONT LH RED

5452282520

Non disponible

3

PANEL-FILL FRONT LH WHITE

5452282599

Non disponible

3

PANEL-FILL FRONT LH BLACK

5452282666

Non disponible

3

PANEL-FILL FRONT LH BLUE

5452282598

Non disponible

4

ASM-DOOR FILL FRONT RH WHITE

2635882599

Non disponible

5

GLASS-FILL FRONT FULL RH

2635860

Non disponible

6

PANEL-FILL FRONT RH RED

5452283520

Non disponible

6

PANEL-FILL FRONT RH BLACK

5452283666

Non disponible

6

PANEL-FILL FRONT RH WHITE

5452283599

Non disponible

6

PANEL-FILL FRONT RH BLUE

5452283598

Non disponible

7

ASM-DOOR FILL REAR LH WHITE

2635883599

Non disponible

8

GLASS-FILL REAR FULL LH

2635861

Non disponible

9

PANEL-FILL REAR LH BLUE

5452284598

Non disponible

9

PANEL-FILL REAR LH RED

5452284520

Non disponible

9

PANEL-FILL REAR LH BLACK

5452284666

Non disponible

9

PANEL-FILL REAR LH WHITE

5452284599

Non disponible

10

ASM-DOOR FILL REAR RH WHITE

2635884599

Non disponible

11

GLASS-FILL REAR FULL RH

2635862

Non disponible

12

PANEL-FILL REAR RH BLUE

5452285598

Non disponible

12

PANEL-FILL REAR RH RED

5452285520

Non disponible

12

PANEL-FILL REAR RH WHITE

5452285599

Non disponible

12

PANEL-FILL REAR RH BLACK

5452285666

Non disponible

13

BLOCK-DOOR CURVED BLACK

5140525626

Non disponible

14

BLOCK-DOOR STRAIGHT BLACK [E2]

5140526626

Non disponible

14

BLOCK-DOOR STRAIGHT BLACK

5140001626

Non disponible

15

BRKT-DOOR STOP BLACK [E6]

5260839626

Non disponible

16

BRKT-STRIKER BLK [ELXD][FROM 6/7/16]

5263267626

Non disponible

16

BRKT-STRIKER BLK [ELXD][FROM 4/10/2017]

5264694626

Non disponible

17

PIN HITCH

7661644

$3,99 Prix unitaire TTC

18

EXTRUSION-PILLAR FRONT LH BLK

5510885626

Non disponible

19

EXTRUSION-PILLAR FRONT RH BLK

5510886626

Non disponible

20

EXTRUSION-PILLAR REAR LH BLK

5510889626

Non disponible

21

EXTRUSION-PILLAR REAR RH BLK

5510890626

Non disponible

22

EXTRUSION-COVER PILLAR 1167MM

55221321167

Non disponible

23

EXTRUSION-COVER PILLAR 1350MM

55221321350

Non disponible

24

SCR-HXFL-M5X0.8X12 4.8 ZPC NYL

7518984

$13,99 Prix unitaire TTC

25

SCR-TXBH-M8X1.25X25 8.8 ZB

7519728

$8,99 Prix unitaire TTC

26

SCR-TXTH-M8X1.25X65 8.8 ZB3 P3

7520390

Non disponible

27

WELD-HINGE DOOR PILLAR LH BLK

1021389626

Non disponible

28

BLT-STRIKER QTY 4 FOR [E4/E6]

7520489

Non disponible

29

NUT-NYLOK

7547718

$6,99 Prix unitaire TTC

30

WELD-HINGE DOOR PILLAR RH BLK

1021495626

Non disponible

31

NUT-M8X1.25 FLG NYLOC-OLIVE D

7547454

$4,99 Prix unitaire TTC

32

WASHER-8.4X16.0X1.6 SPC

7556305

$1,99 Prix unitaire TTC

33

PIN-CLEVIS 5/16X1 1/2

7661163

$6,99 Prix unitaire TTC

34

WASHER-10.25X19.0X2.0 NYLON

5439712

$2,99 Prix unitaire TTC

35

NUT-M8X1.25 ROLL-IN LEAF

7547806

Non disponible

36

EXTRUSION-COVER EDGE DOOR LH

5522185

Non disponible

36

EXTRUSION-COVER EDGE DOOR RH

5522186

Non disponible

37

WASHER-FLAT .531X1.063X.095-Y

7556333

$6,99 Prix unitaire TTC

38

WASHER-EXT LOCK M12 [ELXD][FROM 4/10/2017]

7557092

Non disponible

Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
