BRAS DE SUSPENSION ARRIERE TRAIL 0962761 (4931763176C007) POUR TRAIL - 0962761 DE 1996

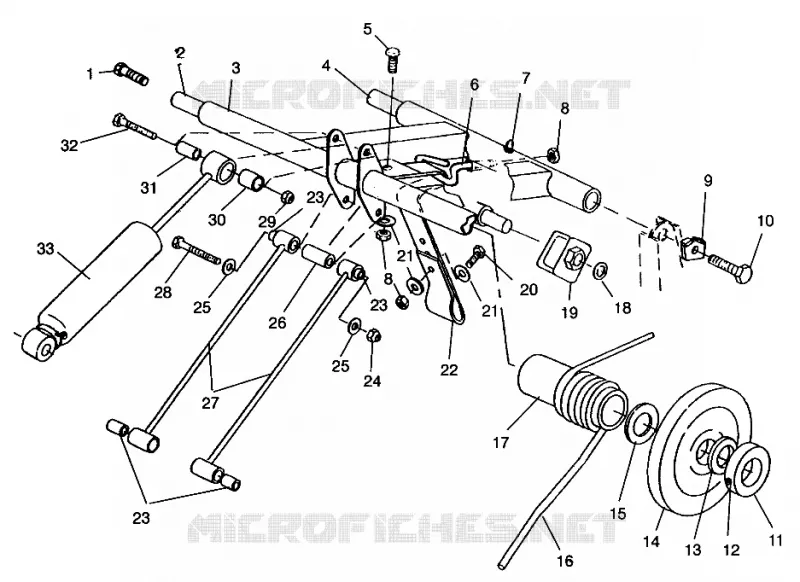

BRAS DE SUSPENSION ARRIERE TRAIL 0962761 (4931763176C007)

1

BOLT(10)

7515432

Non disponible

2

SHAFT R.TORQUE UPPER

5020845

$109,99 Prix unitaire TTC

3

ARM R.TORQUE BLK Substituted by 2200914 (X-10 Blk)

1541024067

Non disponible

4

SHAFT LOW RR TORQUE

5020843

Non disponible

5

SCR-RHCAR-5/16-18X0.75 GR5 ZY3

7512377

$8,99 Prix unitaire TTC

6

BOLT EYE

7010050

Non disponible

7

FITTING LUBRICATION

7080433

$1,99 Prix unitaire TTC

8

NUT FLANGE

7542321

$1,99 Prix unitaire TTC

9

LOCK BOLT MECHANICAL

5211649

Non disponible

10

BOLT(10)

7515526

$1,99 Prix unitaire TTC

11

COLLAR-BRG. LOCK

5010155

Non disponible

12

SCREW SOCKET SET

7512257

$6,99 Prix unitaire TTC

13

WASHER THRUST(10) Substituted by 7555871

7555862

$9,99 Prix unitaire TTC

14

WHEEL CARRIER

1543023

Non disponible

15

WASHER THRUST

7555787

$9,99 Prix unitaire TTC

16

SPRING RH TORS(.421DIA) (.421) Med.

7041462067

$199,99 Prix unitaire TTC

16

SPRING LH TORS(.406DIA) (.406) Std.

7041463067

Non disponible

16

SPRING RH TORS(.406DIA) (.406) Std.

7041464067

Non disponible

16

SPRING LH TORS(.421DIA) (.421) Med.

7041461067

Non disponible

17

SLEEVE TORSION SPRING

5431923

$10,99 Prix unitaire TTC

18

CLIP PUSH ON

7080394

$3,99 Prix unitaire TTC

19

ROLLER SPRING ADJ.

5431168

Non disponible

20

SCR-5/16-18X1-HX/FLG-GR5-Y

7515307

$6,99 Prix unitaire TTC

21

WASHER-.328X1.25X16GA FL-Y

7555716

$2,99 Prix unitaire TTC

22

STRAP LIMITER (RR QA)

5411061

Non disponible

23

BUSHING PIVOT TUBE

5020561

$2,49 Prix unitaire TTC

24

NUT FLEXLOC

7542411

$5,99 Prix unitaire TTC

25

WASHER WAVE SPRING(10)

7555795

$1,99 Prix unitaire TTC

26

SPACER

5333420

$18,29 Prix unitaire TTC

27

ROD SHOCK

1541015067

Non disponible

28

SCR-3/8-24X3 3/4 HX CP GR5-Y

7515472

$3,99 Prix unitaire TTC

29

NUT FLEX-LOC(10)

7542303

$10,99 Prix unitaire TTC

30

BUSHING

5430537

$6,99 Prix unitaire TTC

31

BUSHING R.SHOCK

5333030

Non disponible

32

SCR-HH-5/16-18X1.75 GR5 ZY3

7512329

$6,99 Prix unitaire TTC

33

SHOCK GAS ADJ R.TRACK

7041441

Non disponible

Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
