SIEGE ET RESERVOIR ULTRA SKS 0960578, EUROPEAN ULTRA SKS E960578, and ULTRA (4931683168A007) POUR EURO ULTRA SKS - E960578 DE 1996

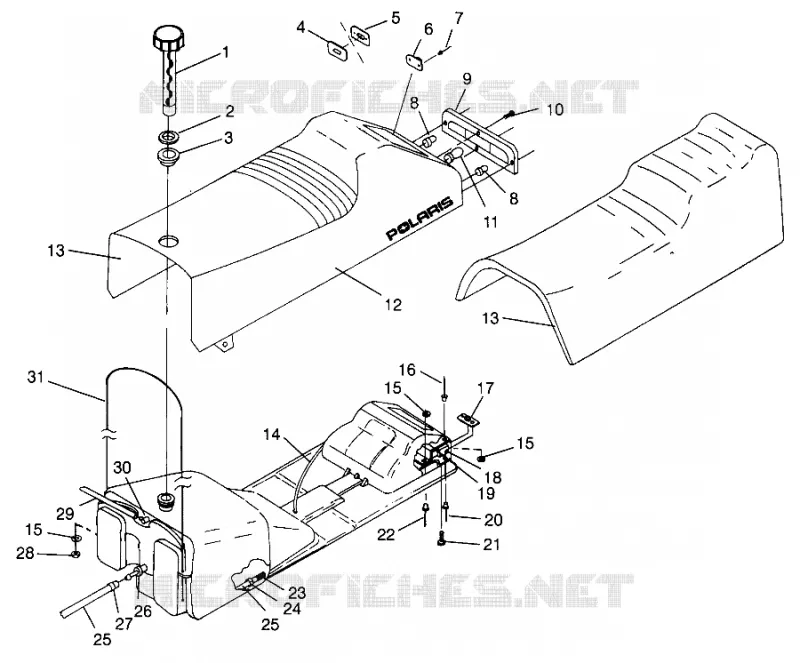

SIEGE ET RESERVOIR ULTRA SKS 0960578, EUROPEAN ULTRA SKS E960578, and ULTRA (4931683168A007)

1

CAP GAS W/GAUGE

2511248

$79,99 Prix unitaire TTC

2

GASKET GAS CAP

5810513

$14,99 Prix unitaire TTC

3

GROMMET FUELTANK

5410842

Non disponible

4

GROMMET RELATCH 1# BOTT.(10)

7080550

Non disponible

5

GROMMET RELATCH 1# TOP(10)

7080549

Non disponible

6

TWISTLOCK RELATCH 1# W/HOLE(10)

7080548

Non disponible

7

RIVET(50)

7621337

$1,99 Prix unitaire TTC

8

BULB TAILLIGHT(10)

4030024

$8,99 Prix unitaire TTC

9

LENS TAILLIGHT

5430423

Non disponible

10

SCREW(10)

7511840

Non disponible

11

BULB BRAKELIGHT

4030045

Non disponible

12

COVER SEAT LONG (RMK) (RMK)

2681951

Non disponible

12

COVER SEAT 2-UP(SPORT TRG.) Substituted by 2682163 (EURO Only)

2681788

Non disponible

12

COVER SEAT LONG (SKS)

2681879

Non disponible

13

SEAT ASM LONG (RMK) (RMK) (Incl. 4-26 30-32)

2681949

Non disponible

13

CUSHION SEAT ASM.

2681836

Non disponible

13

CUSHION SEAT LONG (SKS) (Incl. 4-26 30-32)

2681878

Non disponible

14

HARNESS TAILLIGHT

2460398

Non disponible

15

BURR RIVET(50) Substituted by 7555904

7555746

$1,49 Prix unitaire TTC

16

RIVET

7621467

$1,99 Prix unitaire TTC

17

NUT RETAINER-WELD.(10)

7542147

$29,49 Prix unitaire TTC

18

HOUSING TAILLIGHT Substituted by 5433341 (See Drwg. A)

5431545

Non disponible

19

COVER T/L PROTECTOR

5431436

$32,69 Prix unitaire TTC

20

RIVET(50)

7621301

Non disponible

21

SCR-1/4-20X1 1/4-TRIRD HX WH-Y

7512242

$3,99 Prix unitaire TTC

22

RIVET-POP 3/16 (.376-.500) AL-LFB

7621460

$1,99 Prix unitaire TTC

23

FUELPICKUP W/STRAINER

7052037

$24,99 Prix unitaire TTC

24

RING COMPRESSION

7080402

$2,99 Prix unitaire TTC

25

HOSE [BULK SVC]

84500031525

$129,99 Prix unitaire TTC

26

FITTING OUTLET DOUBLE

7052023

$34,99 Prix unitaire TTC

27

CLAMP-HOSE (LARGE GREEN)

7080307

$1,49 Prix unitaire TTC

28

NUT-NYLOC 10-24 Y

7541925

$1,49 Prix unitaire TTC

29

HOSE-POLY CLEAR 3/16 OD 1/8 ID

8360009600

$79,99 Prix unitaire TTC

30

FITTING 90 DEGREE

7052095

$8,99 Prix unitaire TTC

31

CABLE TANK RETENTION

7080559

Non disponible

Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
