SUSPENSION, PORTE BAGAGES ARRIERE POUR RANGER XP 1000 EPS EU / TRACTOR / ZUG DE 2023

SUSPENSION ARRIERE CONTROL ARMS

SUSPENSION, FRONT BARRE STABILISATRICE

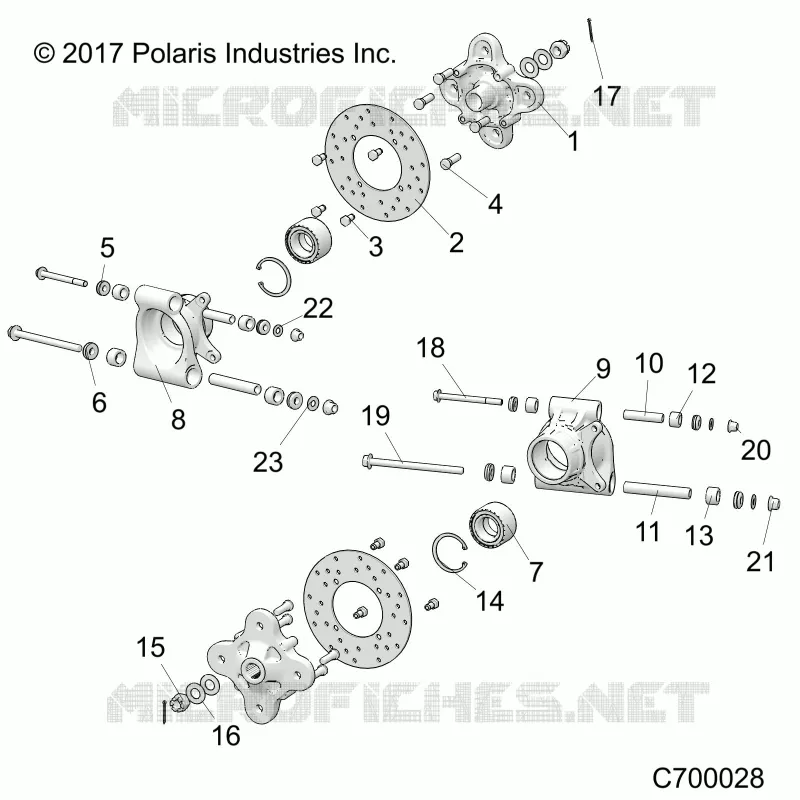

SUSPENSION, PORTE BAGAGES ARRIERE

1

HUB-WHEEL MACH BLK

5142964067

$159,99 Prix unitaire TTC

2

DISC-BRAKE REAR 8.625X.188

5248250

$134,99 Prix unitaire TTC

3

SCR-M10X1.5X20 8.8 ZY3

7519343

$8,99 Prix unitaire TTC

4

STUD-WHEEL M12-1.5

7519753

$8,99 Prix unitaire TTC

5

ASM-PIVOT CAP SEALED M10

1543611

$9,99 Prix unitaire TTC

6

ASM-PIVOT CAP SEALED M12 [INCLUDES O-RING & SEAL]

1543612

$9,99 Prix unitaire TTC

7

BEARING-WHEEL HD 40X74X40MM [OPTIONAL]

3515087

$102,99 Prix unitaire TTC

8

CARRIER-BEARING LH

5140866

$284,99 Prix unitaire TTC

9

CARRIER-BEARING RH

5140867

$284,99 Prix unitaire TTC

10

SHAFT-PIVOT SHORT M10

5139990

$9,99 Prix unitaire TTC

11

SHAFT-PIVOT LONG M12

5139991

$15,99 Prix unitaire TTC

12

BUSHING-STANDARD SUSP M10

5452233

$4,99 Prix unitaire TTC

13

BUSHING-STANDARD SUSP M12

5452271

$5,99 Prix unitaire TTC

14

RING-RETAINING 2.875 INTERNAL

7710440

$17,99 Prix unitaire TTC

15

NUT-M18X1.5 CASTLE ZINC/YELLOW

7547337

$3,49 Prix unitaire TTC

16

WSHR-AXLE M18 42X4.5

7557134

$13,99 Prix unitaire TTC

16

WASHER-CONE.755X1.5X.072-.107P [RRP99C]

7555796

$13,99 Prix unitaire TTC

17

PIN-COTTER 1/8X1 1/2-Y

7661404

$8,99 Prix unitaire TTC

18

SCR-HXFL-M10X1.25X115 10.9 ZOD

7519365

$23,99 Prix unitaire TTC

19

SCR-HXFL-M12X1.5X170 10.9 ZOD

7520294

$19,99 Prix unitaire TTC

20

NUT-M10X1.25 FLG NYLOC-OLIVE D

7547333

$2,99 Prix unitaire TTC

21

NUT-M12X1.5 FLG NYLOC-OLIVE D

7547334

$8,99 Prix unitaire TTC

22

WASHER

7556153

$3,49 Prix unitaire TTC

23

WASHER-7/16 SAE STF THRU-HRD-Y

7556212

$14,99 Prix unitaire TTC

Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
