SYSTÃˆME D'ALIMENTATION, FUEL TANK ASM. POUR SPORTSMAN 570 X2 EU / ZUG TRACTOR DE 2023

REFERENCE, MANUEL DU PROPRIETAIRE

MOTEUR, WATERPUMP IMPELLER AND COVER

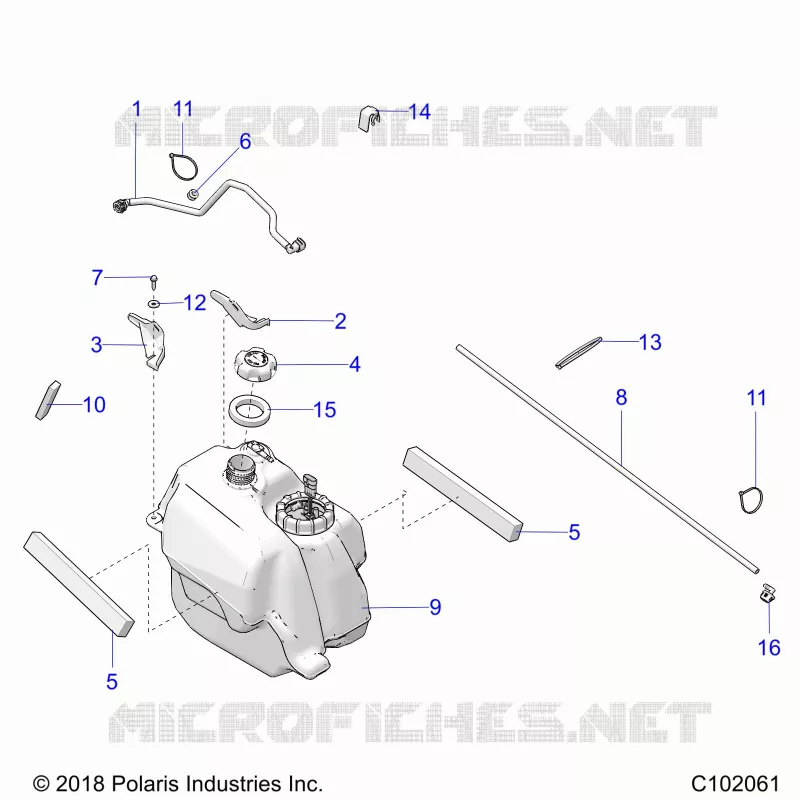

SYSTÃˆME D'ALIMENTATION, FUEL TANK ASM.

1

ASM-FUEL LINE HARD TOUR

2521955

$114,99 Prix unitaire TTC

2

BRACKET SEAT BASE CAB MOUNT LH

5452276

$9,99 Prix unitaire TTC

3

BRACKET SEAT BASE CAB MOUNT RH

5452277

$9,99 Prix unitaire TTC

4

CAP-GAS TANK

5439075

$44,99 Prix unitaire TTC

5

FOAM-SEAL 1.5 X 12

5813255

$12,99 Prix unitaire TTC

6

GROMMET-SLIT 2#

5416475

$4,99 Prix unitaire TTC

7

SCR-1/4-20X1 HX/WH/TAP/R GR5-Y

7515179

$3,99 Prix unitaire TTC

8

FUEL LINE-54 CENTIMETRS

845004054

$19,99 Prix unitaire TTC

9

FUEL PUMP SERVICE KIT ATV TRG [INCL. PUMP GASKET NUT INSTRUCTIONS]

2208126

$639,99 Prix unitaire TTC

9

ASM-FUEL TANK 570 TRG [TO 1/15/2024]

2522072

$1 579,99 Prix unitaire TTC

9

ASM-FUEL TANK 570 TRG [FRM 1/15/2024]

2522720

$1 579,99 Prix unitaire TTC

10

Foam Cover

5813265

$34,99 Prix unitaire TTC

11

CABLE-TIE DIA12-50MM WTHR-RES.

7080138

$4,99 Prix unitaire TTC

12

WASHER-.327X.875X.090 FL-Y

7555960

$6,99 Prix unitaire TTC

13

CABLE-TIE 10-102MM WEATH.-RES.

7080761

$4,99 Prix unitaire TTC

14

COVER-FUEL LINE CONNECTOR

5454451

$17,99 Prix unitaire TTC

15

SEAL-FOAM FUEL FILL NECK

5814816

$11,99 Prix unitaire TTC

16

FITTING-VENT LINE 90

5453464

$9,99 Prix unitaire TTC

Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
