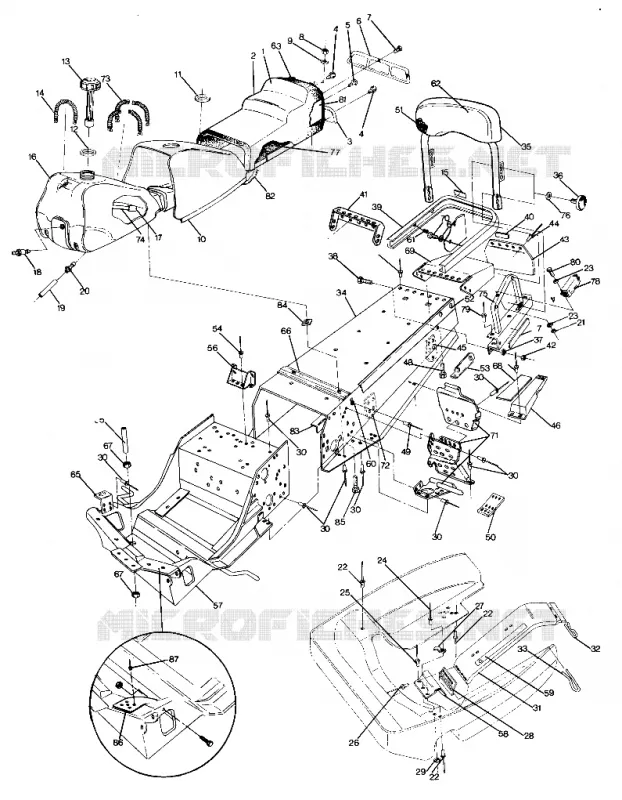

CHASSIS AND SIEGE TRAIL DELUXE (4919281928003A) POUR TRAIL

1

SEAT (TRAIL DELUXE) Substituted by 2200746 (Incl. 2-7 63 77)

2681443

Non disponible

2

COVER SEAT Substituted by 2200743

2681444

Non disponible

3

HOUSING TAILLIGHT

5430425

Non disponible

4

BULB TAILLIGHT(10)

4030015

$7,99 Prix unitaire TTC

5

BULB BRAKELIGHT

4030019

Non disponible

6

LENS TAILLIGHT

5430423

Non disponible

7

SCREW(10)

7511840

Non disponible

8

NUT NYLOK

7542122

$1,99 Prix unitaire TTC

9

WASHER-.270X1.25X.060 FL-Y

7558221

$3,99 Prix unitaire TTC

10

COVER TANK

2681442

Non disponible

11

GROMMET GAS TANK [No Longer Available]

5431190

Non disponible

12

GASKET-GAS CAP Substituted by 5810513

5810142

5810513

$14,99 Prix unitaire TTC

13

CAP GAS(HI.CAP.)

2511184

Non disponible

14

SPRING TANK FRONT

7042020

$25,99 Prix unitaire TTC

15

DECAL 36## R.BUMP [No Longer Available] (650 Only)

7072582

Non disponible

16

TANK GAS Substituted by 2511199

2511185

Non disponible

17

FUELPICKUP W/STRAINER

7052037

7052301

$24,99 Prix unitaire TTC

18

FITTING OUTLET DOUBLE

7052023

$34,99 Prix unitaire TTC

19

KIT-TANK VENT

2200190

Non disponible

20

VENT FITTING TANK Substituted by 5430579

5430669

Non disponible

21

NUT LOCK(10) Substituted by 7541925

7541929

7541925

$1,49 Prix unitaire TTC

22

RIVET-POP3/16(.251-.375)AL-LFB

7621457

$1,99 Prix unitaire TTC

23

WASHER FLAT

7555783

$6,99 Prix unitaire TTC

24

RIVET-POP 3/16(.251-.375)-ST-Z

7621402

$1,99 Prix unitaire TTC

25

RIVET(50)

7621452

$1,99 Prix unitaire TTC

26

RIVET

7621330

$1,99 Prix unitaire TTC

27

CLIP WIRING (10) Substituted by 7080665

4020035

Non disponible

28

HINGE (TRAIL)

5211047

Non disponible

29

WASHER FLAT

7558212

$1,49 Prix unitaire TTC

30

RIVET (MONOBOLT) Substituted by 7661637

7661620

7661637

$1,99 Prix unitaire TTC

31

GUARD CLUTCH Substituted by 5240965

5230118

Non disponible

32

PIN RETAINING (10)

7080216

7080698

$16,99 Prix unitaire TTC

33

PIN FRONT (TRAIL)

7080311

Non disponible

34

TUNNEL (TRAIL DELUXE)

1011774

Non disponible

35

BACKREST ASM. (Incl. 62)

2681449

Non disponible

36

KNOB ADJ. Substituted by 2670130

7030007

Non disponible

37

WASHER-.312 X .734 X .065-Z

7558302

$2,99 Prix unitaire TTC

38

SCR-HH-5/16-18X0.75 GR5 ZY3 NY

7512325

$3,99 Prix unitaire TTC

39

BUMPER REAR Substituted by 2670122

5224420

Non disponible

40

DECAL TRACK [No Longer Available]

7072872

Non disponible

41

PANEL BACK [No Longer Available]

5220767

Non disponible

42

NUT-5/16-18 NYLOK-Y [INTL]

7542324

$1,49 Prix unitaire TTC

43

FLAP SNOW SILVER Substituted by 5410394-1106 (400)

5410394

5410394-1038

$184,99 Prix unitaire TTC

44

POP RIVET(50)

7621418

$1,99 Prix unitaire TTC

45

PAD RH R.SUSP.MTG. Substituted by 1011750-067

1011750

Non disponible

45

PAD LH R.SUSP.MTG. Substituted by 1011749-067

1011749

Non disponible

46

FOOTREST RH REAR

5220894

$49,09 Prix unitaire TTC

46

FOOTREST LH REAR

5220893

Non disponible

48

SCREW(10)

7512116

Non disponible

49

RIVET(50)

7621222

$0,99 Prix unitaire TTC

50

PLATE TUNNEL RH

5220635

Non disponible

50

PLATE TUNNEL LH

5220634

Non disponible

51

FOAM BACKREST [No Longer Available]

2681456

Non disponible

52

DECAL(47.5##)TUNNEL [No Longer Available]

7072078

Non disponible

53

WEARPLATE TUNNEL (400 & 650)

5222061

Non disponible

54

RIVET(50)

7621301

Non disponible

55

TUBE BATT.DRAIN Substituted by 5332405

5332893

Non disponible

56

SEAT RISER ASM. Substituted by 1011773-067

1011773

Non disponible

57

BULKHEAD Substituted by 1011612

1011673

Non disponible

58

BRACKET HINGE Substituted by 5241437

5220406

Non disponible

59

DECAL ENG/CLUTCH [No Longer Available]

7072871

Non disponible

60

SNAP-MALE(10)

7080227

Non disponible

61

RIVNUT(10)

7542130

$10,49 Prix unitaire TTC

62

COVER BACKREST

2681450

Non disponible

63

BUCKLE&STRAP (Trail)

2681291

Non disponible

65

SUPPORT MUFFLER FRONT [No Longer Available]

5222575

Non disponible

66

BRKT R.FUELTANK MTG. Substituted by 5222375-067

5222375

Non disponible

67

PALNUT(10) (Twin ES)

7670031

Non disponible

68

PAD LH FOOT SAFETY

5830007

$10,19 Prix unitaire TTC

68

PAD RH FOOT SAFETY

5830008

Non disponible

69

PANEL R.CLOSE-OFF ASM. (Incl. 41)

1011799

$50,29 Prix unitaire TTC

70

BOLT(10)

7512240

$6,99 Prix unitaire TTC

71

FOOTREST ASM LH

2200250

Non disponible

71

FOOTREST ASM RH

2200254

Non disponible

72

BRKT. Substituted by 5220542-067

5220542

Non disponible

73

SPRING TANK

7042033

Non disponible

74

LINE-BOOST 3/16 ID 85 CM

8450003

8450003-1525

$129,99 Prix unitaire TTC

75

GRAB BAR LH Substituted by 1011729-067

1011729

Non disponible

75

GRAB BAR RH Substituted by 1011730-067

1011730

Non disponible

76

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$2,99 Prix unitaire TTC

77

BUN SEAT [No Longer Available]

5431135

Non disponible

78

GRIP HAND Substituted by 5433383

5431015

Non disponible

79

RIVET CH. Q

7621429

$1,99 Prix unitaire TTC

80

SCREW-#10-24X1.5 TRX/PN MC-Y

7510504

$9,99 Prix unitaire TTC

81

BOX TOOL (2-UP SEAT) Substituted by 5431345

5430925

Non disponible

82

HARNESS-TAILLIGHT Substituted by 2460399

2460226

Non disponible

83

BRACE TUNNEL REINF.

5222412

Non disponible

84

NUT SPEED

7670021

$9,99 Prix unitaire TTC

85

SCR-RHCAR-1/4-20X0.75 GR5 ZY3

7512193

$3,99 Prix unitaire TTC

86

BRACE RH BULKHD. Substituted by 5222583-067

5222583

Non disponible

86

BRACE LH BULKHD. Substituted by 5222582-067

5222582

Non disponible
