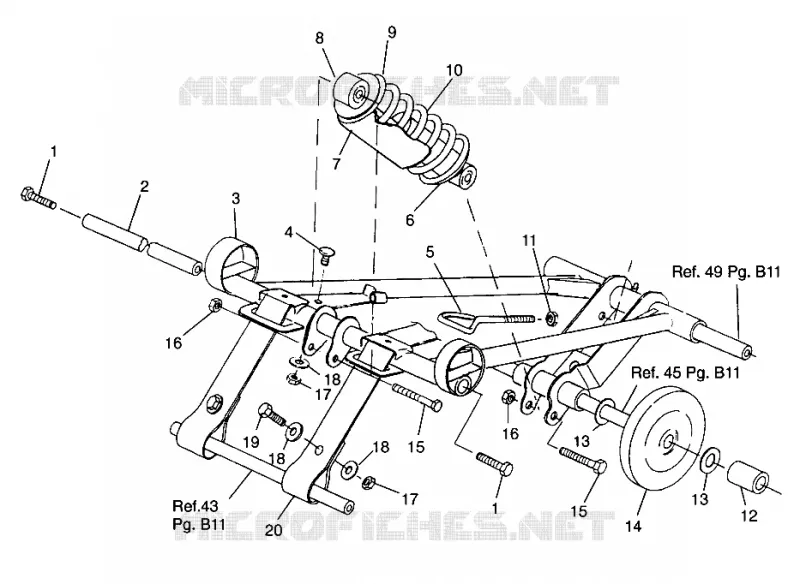

BRAS DE SUSPENSION AVANT 500 EFI RMK 0962974 (4931983198B012) POUR EURO 500 EFI SKS - E962574 DE 1996

BRAS DE SUSPENSION AVANT 500 EFI RMK 0962974 (4931983198B012)

1

BOLT NYLOC BLACK(10) Substituted by 7515432 (650 Only)

7515493

Non disponible

2

SHAFT MTG REAR

5020570

Non disponible

3

ARM FR.TORQUE Substituted by 1541140-067

1540973067

Non disponible

4

SCR-RHCAR-5/16-18X0.75 GR5 ZY3

7512377

$8,99 Prix unitaire TTC

5

BOLT EYE

7010050

Non disponible

6

RETAINER SPRING Substituted by 5245067

5241276067

$39,99 Prix unitaire TTC

7

SHIELD SPRING

5430671

$44,99 Prix unitaire TTC

8

SHOCK FR.TRACK Substituted by 7041743

7041430

Non disponible

9

RETAINER SPRING SLOTTED

5020618

$34,99 Prix unitaire TTC

10

SPRING BLACK COMP.

7041253067

Non disponible

11

NUT-5/16-18 NYLOK-Y [INTL]

7542324

$1,49 Prix unitaire TTC

12

SPACER OUTER

5332784

Non disponible

13

BUSHING-.781 X1.250X.060-Y

7556301

$5,99 Prix unitaire TTC

14

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Non disponible

15

SCREW

7515415

$1,99 Prix unitaire TTC

16

Nut

7542403

Non disponible

17

NUT FLANGE

7542321

$1,99 Prix unitaire TTC

18

WASHER-.328X1.25X16GA FL-Y

7555716

$2,99 Prix unitaire TTC

19

SCR-5/16-18X1-HX/FLG-GR5-Y

7515307

$6,99 Prix unitaire TTC

20

STRAP LIMITER FRONT

5411045

Non disponible

Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
