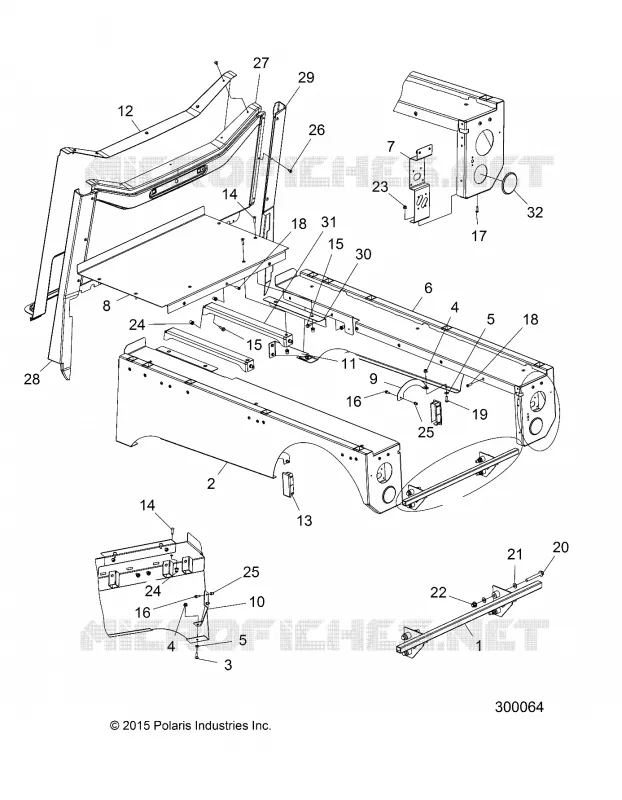

CARROSSERIE ARRIERE POUR GEM (R33) - L16G2/4/6/EURO ALL OPTIONS DE 2016

CARROSSERIE ARRIERE

1

WELD-SUPPORT BED REAR BLK

1021674458

Non disponible

1

K-FENDER FLARES [INCL. FLARES RIVETS]

2881673

Non disponible

2

WELD-SIDE BED LH

1021734

Non disponible

3

SCR-HXBH-M8X1.25X25 A2 SS

7520126

Non disponible

4

NUT- M8X1.25 FLG NYLOC-OLIVE D

7547332

$6,99 Prix unitaire TTC

5

WASHER

7555954

$8,99 Prix unitaire TTC

6

WELD-SIDE BED RH

1021735

Non disponible

7

BRKT-MOUNT TAILLIGHT

5261455

Non disponible

8

COVER-BATTERY

5261458

Non disponible

9

BRKT-FENDER BRACE

5262120

Non disponible

10

BRKT-BED STIFFNER LH

5262338

Non disponible

11

BRKT-BED STIFFNER RH

5262339

Non disponible

12

LINER-FLOOR REAR BLK

5452113070

Non disponible

13

PLUG-RECTANGULAR TUBING

5452653

Non disponible

14

SCR-M8X1.25X30 SOC/FLT/HD-SS

7518250

$2,69 Prix unitaire TTC

15

BOLT-M8X1.25X25 HXFLG-OLIVE D

7518514

$2,99 Prix unitaire TTC

16

SCR-HXFL-M6X1.0X20 8.8 ZOD NYL

7518613

$6,99 Prix unitaire TTC

17

BOLT-M6X1.0X20 PH/TX-OLIVE D

7518616

$1,99 Prix unitaire TTC

18

SCR-HXBH-M8X1.25X25 A2 SS

7520126

Non disponible

19

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$10,99 Prix unitaire TTC

20

SCR-HXFL-M10X1.25X80 8.8 ZOD

7519363

$3,99 Prix unitaire TTC

21

WASHER

7556153

$3,49 Prix unitaire TTC

22

NUT-M10X1.25 FLG NYLOC-OLIVE D

7547333

$2,99 Prix unitaire TTC

23

NUT-M6X1.0 FLG-NYLOC-OLIVE D

7547339

$1,99 Prix unitaire TTC

24

NUT-RIVNUT M8X1.25

7547788

Non disponible

25

NUT-RIVNUT M6X1.00

7547789

$5,99 Prix unitaire TTC

26

RIVET-TUFLOK .315-.325X.787 ?

7661855

$1,99 Prix unitaire TTC

27

PANEL-BACK WHITE

5452514599

Non disponible

28

PANEL-REAR LH WHITE

5452515599

Non disponible

29

PANEL-REAR RH WHITE

5452516599

Non disponible

30

BRKT-SUPPORT BED SHORT

5261397

Non disponible

31

BRKT-SUPPORT BED LONG

5261398

Non disponible

32

PLUG - REVERSE LAMP

5452866

Non disponible

Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
