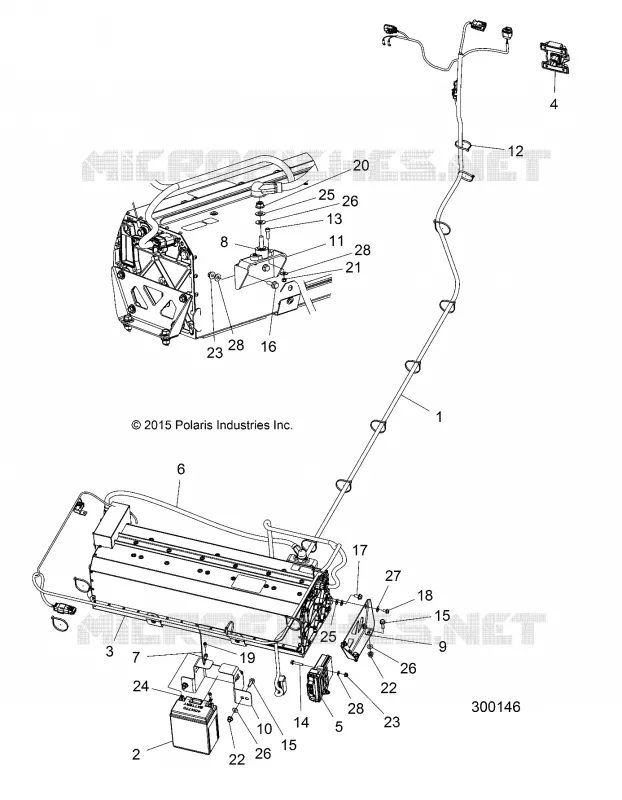

ELECTRICAL, BATTERIE, LI-ION, 8.9KW POUR GEM (R33) - L16G2/4/6/EURO ALL OPTIONS DE 2016

ELECTRICAL, BATTERIE, LI-ION, 8.9KW

1

ASM-HARNESS LITHIUM E2

2413374

Non disponible

1

RELAY SPDT SERIERS 301 SEALED

4011284

$64,99 Prix unitaire TTC

2

BATTERY-12V 210CCA 12AH

4014770

$214,99 Prix unitaire TTC

3

BATTERY-44V LI-ION 8.9KWH

4015495

Non disponible

4

ECU-UNPROGRAMMED BMC [TO 10/26/2015]

4015349

$564,99 Prix unitaire TTC

4

ECU-UNPROGRAMMED BMC [FROM 3/22/16]

4016193

$564,99 Prix unitaire TTC

4

ECU-UNPROGRAMMED BMC [FROM 10/27/2015] AND [TO 3/21/16]

4016150

$564,99 Prix unitaire TTC

5

ECU-UNPROGRAMMED BMC BRAMMO

4015687

Non disponible

6

CABLE-BTRY LI-ION POS LONG

4015891

Non disponible

7

CABLE-BTRY LI-ION NEG 12V

4015893

Non disponible

8

TERMINAL-POS

4016008

Non disponible

9

BRKT-BATTERY SUPPORT BLK

5261281329

$99,99 Prix unitaire TTC

10

BRKT-BTRY HOLD BLK

5261942458

Non disponible

11

BRKT-TERMINAL MOUNT

5261943

Non disponible

12

CABLE-TIE 25-76MM WEATH.-RES.

7080492

$4,99 Prix unitaire TTC

13

SCR-SH-M5X0.8X10 8.8 ZPB D204

7516610

$6,99 Prix unitaire TTC

14

SCR-M6X1.0X35 HX/FL-Y/D

7516827

$11,99 Prix unitaire TTC

15

BOLT-M8X1.25X25 HXFLG-OLIVE D

7518514

$2,99 Prix unitaire TTC

16

SCR-HXFL-M6X1.0X20 8.8 ZOD NYL

7518613

$6,99 Prix unitaire TTC

17

SCR-HH-M8X1.25X20 A2 EP

7520454

Non disponible

18

SCR-HXFL-M6X1.0X12 8.8 ZOD P30

7519145

$6,99 Prix unitaire TTC

19

SCREW-PHHX-M6X1X12 LPS BATTERY

7520056

$5,99 Prix unitaire TTC

20

NUT-HEX 5/16-18-SS

7542334

$1,99 Prix unitaire TTC

21

NUT-M5X.8 HX NYL-Y

7546601

$1,99 Prix unitaire TTC

22

NUT- M8X1.25 FLG NYLOC-OLIVE D

7547332

$6,99 Prix unitaire TTC

23

NUT-M6X1.0 FLG-NYLOC-OLIVE D

7547339

$1,99 Prix unitaire TTC

24

NUT-RECT M6X1 LPS BATTERY

7547732

$6,99 Prix unitaire TTC

25

WASHER-SPRING-LOCK

7552603

$1,49 Prix unitaire TTC

26

WASHER

7555954

$8,99 Prix unitaire TTC

27

WSHR-6.4X18.0X1.6 ZPB

7556064

$8,99 Prix unitaire TTC

28

WASHER-.250X.563X.047 WRGHT-Y

7558203

$5,99 Prix unitaire TTC
